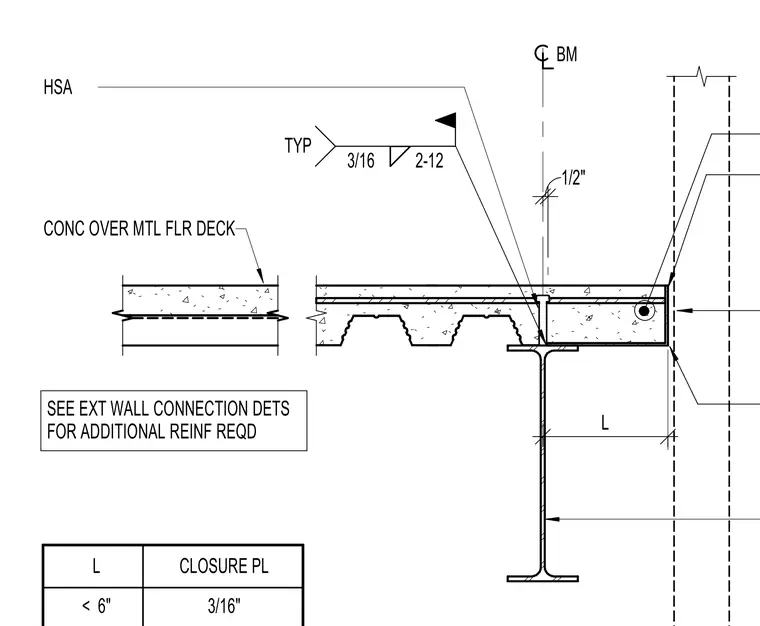

Concrete over metal floor deck framing bears on a steel beam centerline with a one-half inch offset. A three-sixteenth-inch fillet weld attaches the assembly with two-inch by twelve-inch typical spacing. A three-sixteenth-inch closure plate spans openings where the distance L is less than six inches. Additional reinforcing requires review of the exterior wall connection details.
SEE EXT WALL CONNECTION DETS FOR ADDITIONAL REINF REQD L < 6" CLOSURE PL 3/16" CONC OVER MTL FLR DECK L 1/2" HSA BM 3/16 2-12 TYP
