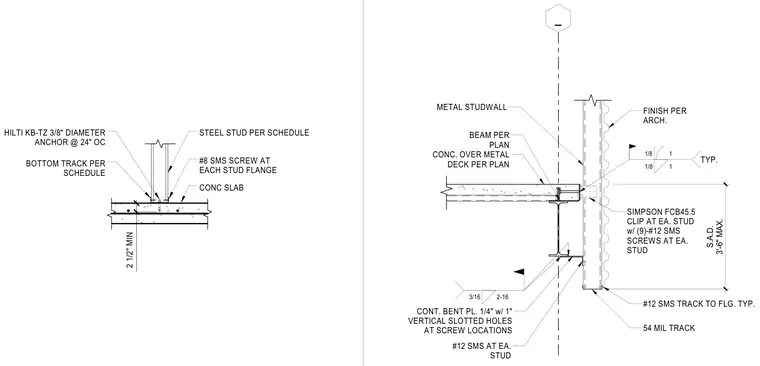

Cold-formed steel stud wall framing tied to a concrete slab on metal deck and supporting structural steel beams. The concrete slab receives a bottom track anchored with 3/8-inch diameter Hilti KB-TZ anchors spaced at 24 inches on center, secured by number 8 sheet metal screws at each stud flange. An alternative connection detail utilizes a continuous 1/4-inch bent plate featuring 1-inch vertical slotted holes at screw locations, connected via Simpson FCB45.5 clips at each stud with nine number 12 sheet metal screws. Number 12 sheet metal screws fasten the track to the flange typically, with a maximum stud spacing height of 3 feet 6 inches.
2 1/2" MIN #8 SMS SCREW AT EACH STUD FLANGE CONC SLAB HILTI KB-TZ 3/8" DIAMETER ANCHOR @ 24" OC BOTTOM TRACK PER SCHEDULE STEEL STUD PER SCHEDULE S.A.D. 3'-6" MAX. #12 SMS AT EA. STUD 54 MIL TRACK SIMPSON FCB45.5 CLIP AT EA. STUD w/ (9)-#12 SMS SCREWS AT EA. STUD FINISH PER ARCH. CONT. BENT PL. 1/4" w/ 1" VERTICAL SLOTTED HOLES AT SCREW LOCATIONS BEAM PER PLAN METAL STUDWALL 1/8 1 TYP. 3/16 2-16 _ CONC. OVER METAL DECK PER PLAN 1/8 1 #12 SMS TRACK TO FLG. TYP.
