Structural · S-S786Y

Foundation Mat Reinforcement at Sump Pits

Materials

Concrete Timber / Wood

Elements

Walls Floors / Slabs Reinforcing

Connections

Rebar Splice / Development

About this detail

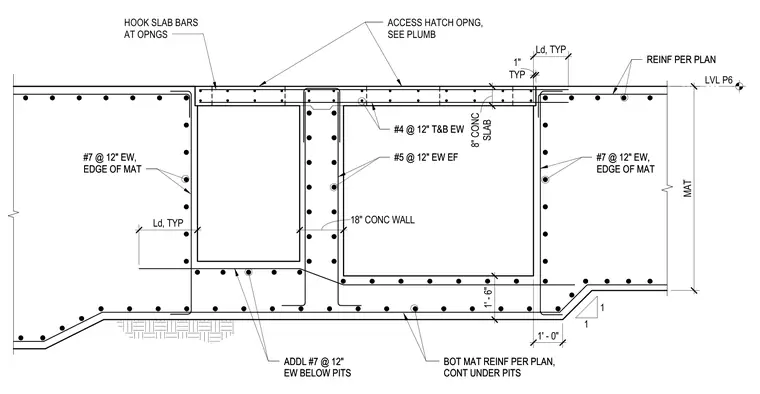

An eight-inch concrete slab features number four bars at twelve inches on center top and bottom each way, alongside additional number seven bars at twelve inches on center each way running continuously beneath the pits. Eighteen-inch concrete walls are reinforced with number five bars at twelve inches on center each way each face. Slab bars are hooked at access hatch openings where plumbing coordination is required. Additional edge of mat reinforcement uses number seven bars at twelve inches on center with standard development lengths.
