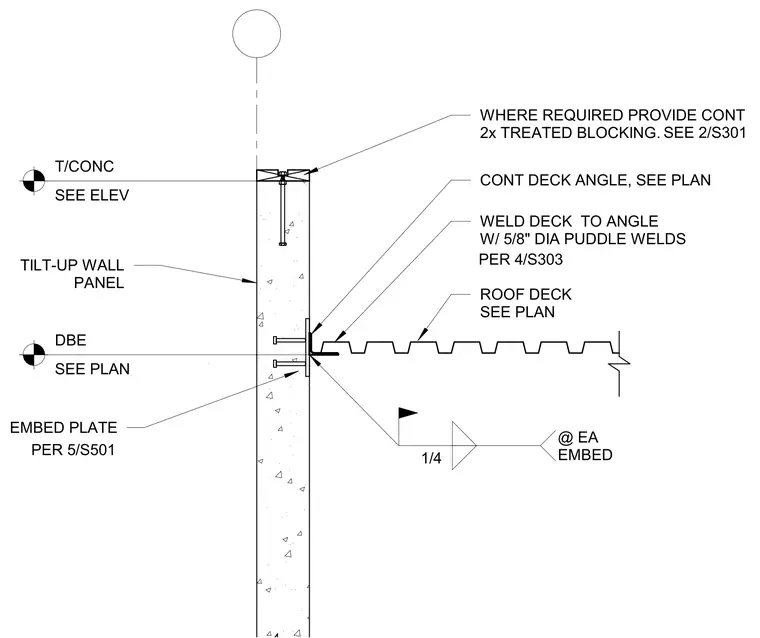

A continuous deck angle welded to an embed plate cast into the concrete secures the roof deck to the tilt-up wall panel. Five-eighths inch diameter puddle welds attach the deck to this angle as specified per detail 4/S303. The embed plate installation follows detail 5/S501, with a one-quarter inch fillet weld applied at each embed location. A continuous two-by treated wood blocking at the top of the parapet provides roof termination as referenced in detail 2/S301. Project plans determine the top of the concrete and the deck bearing elevation.
Text on the drawing
TILT-UP WALL PANEL 1/4 @ EA EMBED T/CONC SEE ELEV DBE SEE PLAN EMBED PLATE ROOF DECK SEE PLAN WELD DECK TO ANGLE W/ 5/8" DIA PUDDLE WELDS CONT DECK ANGLE, SEE PLAN WHERE REQUIRED PROVIDE CONT 2x TREATED BLOCKING. PER 4/S303 SEE 2/S301 PER 5/S501 DETAIL BOOK REF. SHEET: S2.04 DATE: 02/20/2023
