A concrete slab rests on a vapor barrier where applicable, with thickness and reinforcing sized per structural plans. A six-inch granular aggregate base course sits directly beneath the vapor barrier. Four feet of granular engineered fill is placed below the aggregate base per geotechnical recommendations.

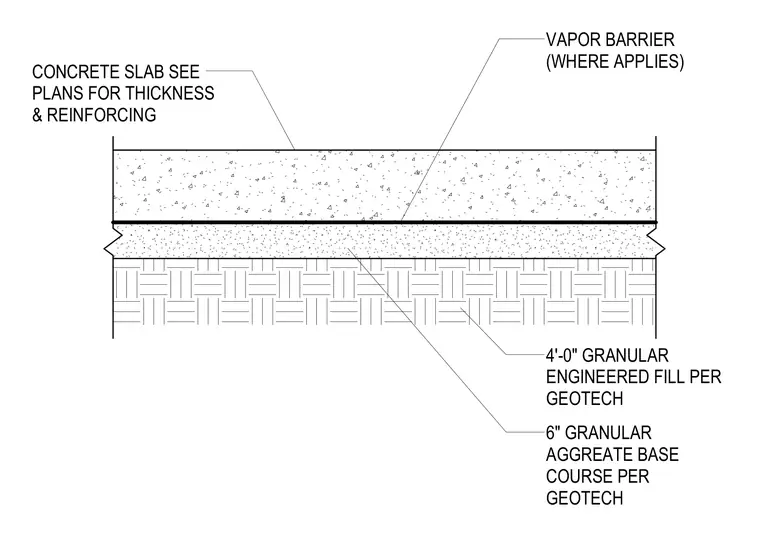

CONCRETE SLAB SEE PLANS FOR THICKNESS & REINFORCING 6" GRANULAR AGGREATE BASE COURSE PER GEOTECH VAPOR BARRIER (WHERE APPLIES) 4'-0" GRANULAR ENGINEERED FILL PER GEOTECH
