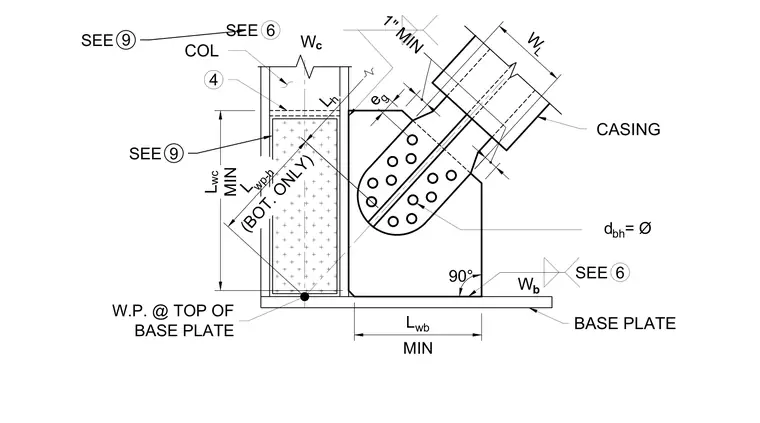

A structural steel column connects to a horizontal base plate via a welded gusset plate and casing assembly. A diagonal member frames into the gusset plate with a bolted connection using bolts of diameter d_bh. The base plate rests with a specified minimum length L_wb and features a ninety-degree corner weld W_b. Additional clearance dimensions and edge distances are detailed relative to the working point at the top of the base plate.
L h L wp-h (BOT. ONLY) L wc MIN COL 4 W.P. @ TOP OF BASE PLATE L wb MIN e g 6 SEE W b BASE PLATE 90° 6 SEE W c CASING 1" MIN W L 9 SEE 9 SEE d bh = Ø
