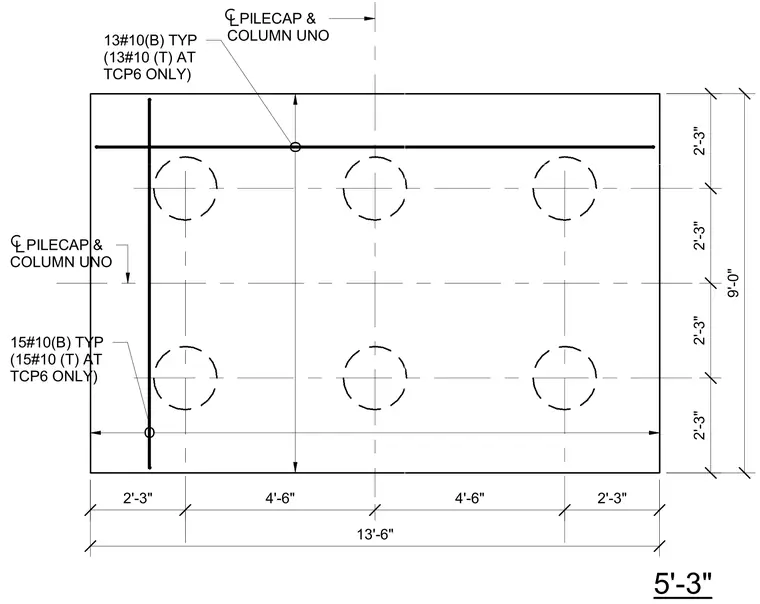

The reinforcing layout for pile cap PC6 measures thirteen feet six inches by nine feet overall with a thickness of five feet three inches. The assembly is centered on the pile cap and column lines unless noted otherwise, incorporating rows of number ten reinforcing bars at the bottom with specific top bar counts designated for TCP6 conditions. Six driven piles are arranged symmetrically beneath the cap, spaced at four-foot-six-inch intervals with two-foot-three-inch edge clearances. Dimension strings detail the exact offsets for the reinforcement layout and pile locations relative to the primary centerlines.
5'-3" PILECAP & COLUMN UNO 13#10(B) TYP (13#10 (T) AT TCP6 ONLY) PILECAP & COLUMN UNO 2'-3" 4'-6" 4'-6" 2'-3" 13'-6" 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" O O 15#10(B) TYP (15#10 (T) AT TCP6 ONLY)
