A wide-flange steel beam frames into a masonry wall with a pocket formed to match the beam flange width plus three inches maximum. The beam bears on a one-half-inch by eight-inch by eight-inch embed plate anchored by two three-quarter-inch diameter by six-inch heavy stud anchors. Stiffener plates are welded to each side of the beam web per structural notes. The masonry wall features a continuous bond beam with reinforcing and solid grout cells directly below the beam bearing locations.

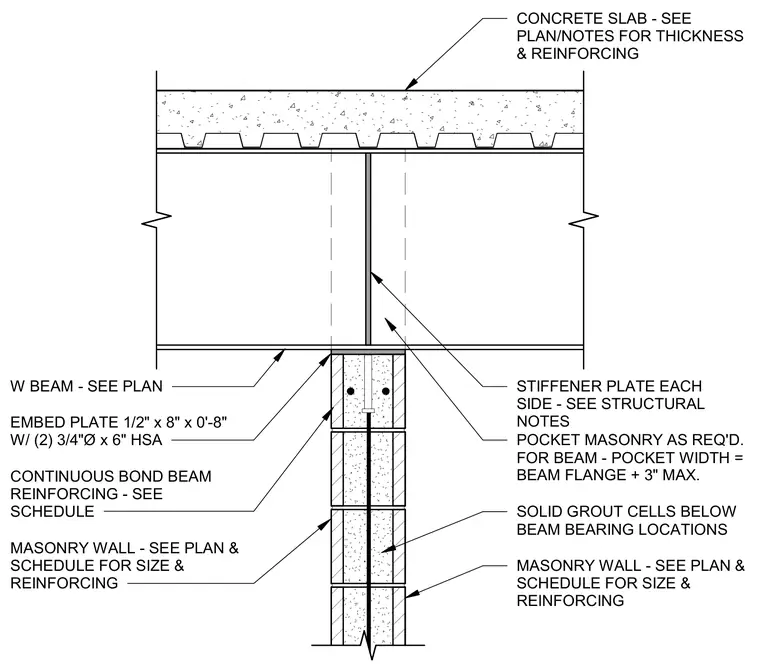

CONCRETE SLAB - SEE PLAN/NOTES FOR THICKNESS & REINFORCING STIFFENER PLATE EACH SIDE - SEE STRUCTURAL NOTES POCKET MASONRY AS REQ'D. FOR BEAM - POCKET WIDTH = BEAM FLANGE + 3" MAX. SOLID GROUT CELLS BELOW BEAM BEARING LOCATIONS MASONRY WALL - SEE PLAN & SCHEDULE FOR SIZE & REINFORCING W BEAM - SEE PLAN EMBED PLATE 1/2" x 8" x 0'-8" W/ (2) 3/4"Ø x 6" HSA CONTINUOUS BOND BEAM REINFORCING - SEE SCHEDULE MASONRY WALL - SEE PLAN & SCHEDULE FOR SIZE & REINFORCING
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
