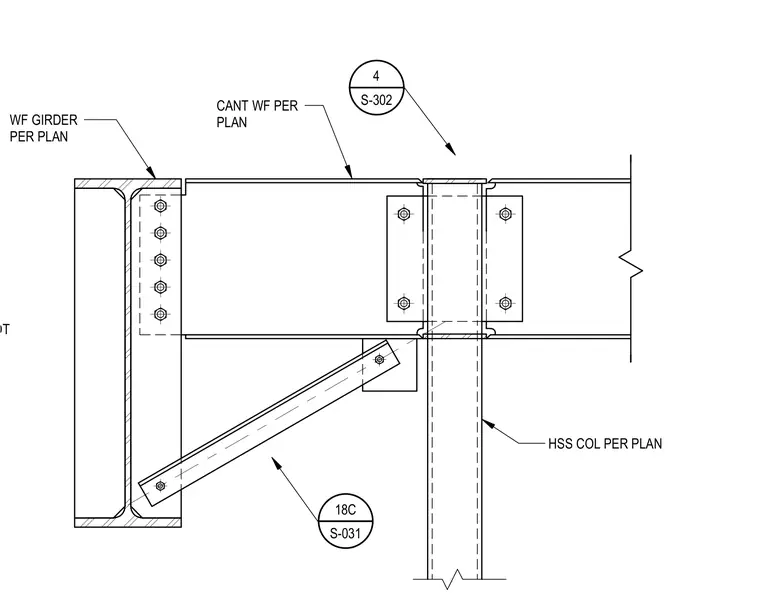

A cantilever wide flange beam connects to a wide flange girder sized per plan and frames across a hollow structural section column sized per plan. A diagonal brace ties back to the girder connection using gusset plates and bolts. The top flange of the cantilever beam connects to the hollow structural section column with top and bottom plates secured by bolts. Members are sized per structural plans.
HSS COL PER PLAN WF GIRDER PER PLAN CANT WF PER PLAN 4 S-302 18 S-031 18C 3" TOP & 3" BOT
