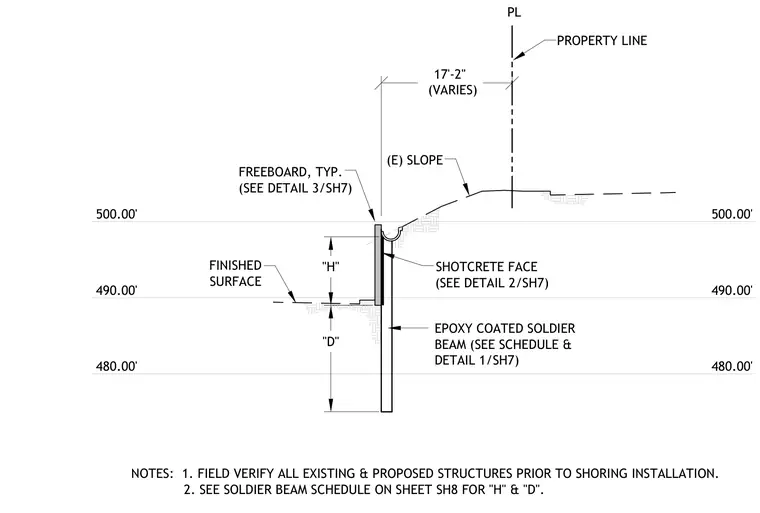

An epoxy coated soldier beam extends vertically below grade with dimensioned height and embedment depths. A shotcrete face is applied against the excavated slope, maintaining a typical freeboard near the finished surface. Existing slope conditions extend back to the property line at a variable offset distance. Elevation marks track vertical grades from 480.00 feet to 500.00 feet across the shoring assembly.
480.00' 490.00' 500.00' FINISHED SURFACE SHOTCRETE FACE (SEE DETAIL 2/SH7) EPOXY COATED SOLDIER BEAM (SEE SCHEDULE & DETAIL 1/SH7) NOTES: 1. FIELD VERIFY ALL EXISTING & PROPOSED STRUCTURES PRIOR TO SHORING INSTALLATION. 2. SEE SOLDIER BEAM SCHEDULE ON SHEET SH8 FOR "H" & "D". FREEBOARD, TYP. (SEE DETAIL 3/SH7) "H" PL "D" (E) SLOPE 17'-2" (VARIES) 480.00' 490.00' 500.00' PROPERTY LINE
