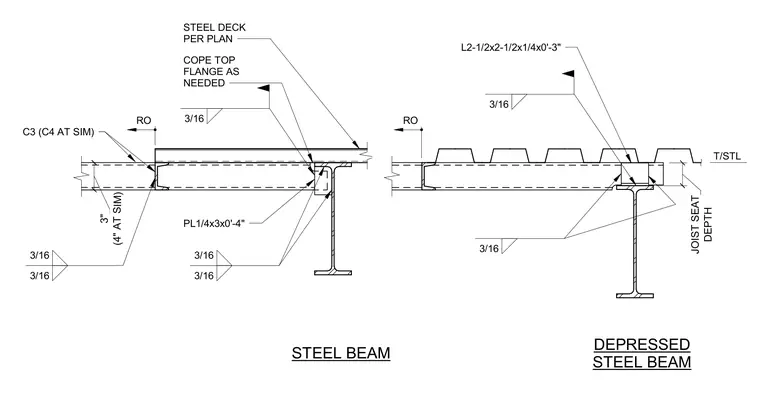

Standard and depressed steel beam framing conditions supporting a steel deck per plan. The assembly incorporates a joist seat depth with a coped top flange as needed, secured with three-sixteenths inch fillet welds. A plate measuring one-quarter by three by zero feet four inches and an angle measuring two and one-half by two and one-half by one-quarter by zero feet three inches are utilized at the connection points. Additional dimensions include three-inch and four-inch vertical clearances for depressed conditions.
T/STL 3/16 3/16 3/16 3/16 3/16 L2-1/2x2-1/2x1/4x0'-3" STEEL DECK PER PLAN C3 (C4 AT SIM) PL1/4x3x0'-4" DEPTH JOIST SEAT COPE TOP FLANGE AS NEEDED STEEL BEAM DEPRESSED STEEL BEAM (4" AT SIM) 3" RO RO 3/16 3/16
