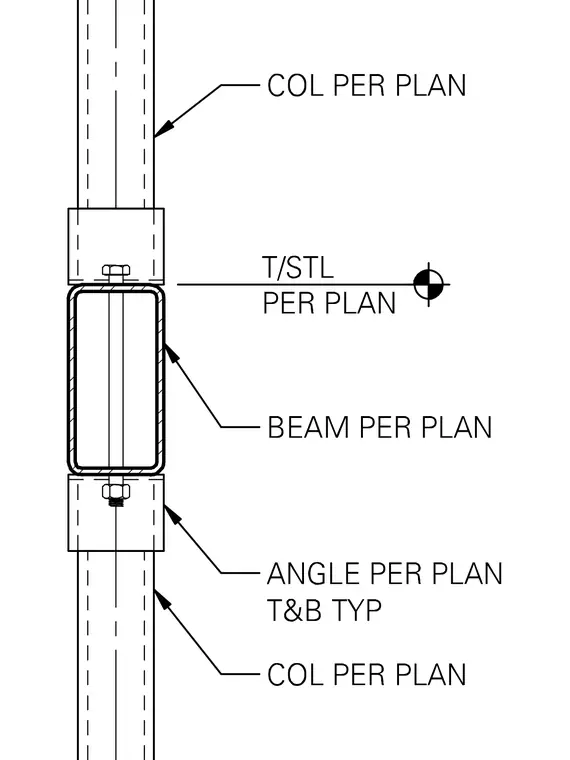

An upper hollow structural section column bears onto a lower hollow structural section column with a beam member passing between them per plan. The connection utilizes top and bottom structural angles sized per plan, secured with through-bolts running vertically through the assembly. The top of steel elevation is coordinated per plan.
