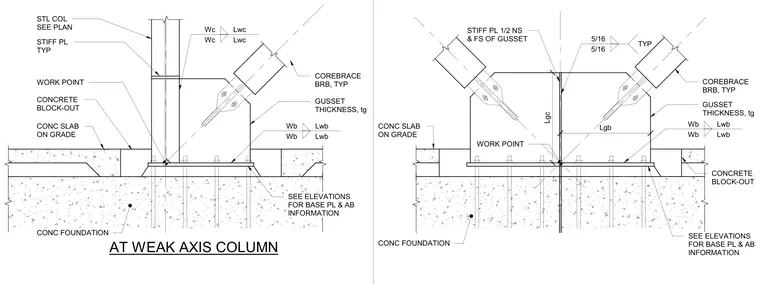

A buckling-restrained brace connects to a gusset plate anchored above a concrete foundation and concrete slab on grade, incorporating a steel column with typical stiffener plates and a concrete block-out. The gusset plate has a thickness of tg with specified weld sizes on the near side and far side, and 5/16-inch fillet welds on typical connections. Base plate and anchor bolt information is referenced to the elevations. A split view details the connection at a weak axis column with a 1/2-inch stiffener plate on the near side and far side of the gusset.
CONC SLAB ON GRADE STL COL SEE PLAN CONCRETE BLOCK-OUT STIFF PL TYP WORK POINT CONC FOUNDATION COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb Wc Lwc Wc Lwc AT WEAK AXIS COLUMN SEE ELEVATIONS FOR BASE PL & AB INFORMATION CONC SLAB ON GRADE CONCRETE BLOCK-OUT STIFF PL 1/2 NS & FS OF GUSSET CONC FOUNDATION WORK POINT 5/16 5/16 TYP COREBRACE BRB, TYP GUSSET THICKNESS, tg Wb Lwb Wb Lwb SEE ELEVATIONS FOR BASE PL & AB INFORMATION Lgb Lgc
