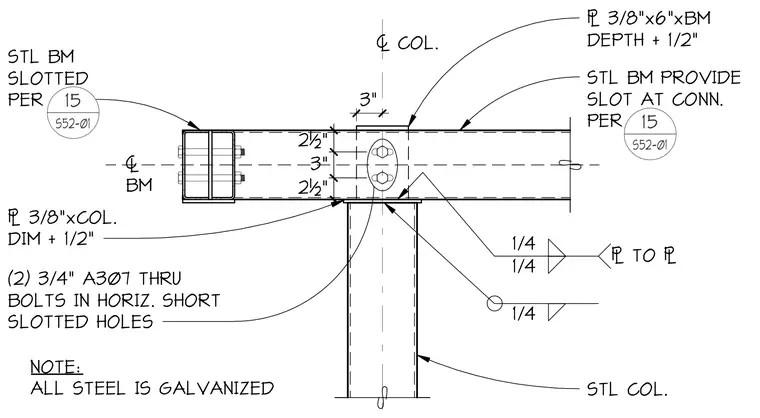

A structural steel beam connects to a steel column using top and bottom plates welded with quarter-inch fillet welds. The steel beam features horizontal short slotted holes to accommodate movement. Two three-quarter-inch A307 through bolts secure the connection through the slotted web. All structural steel elements are galvanized.
COL. 2½" 3" 2½" # 3/8"x6"xBM DEPTH + 1/2" 3" STL BM PROVIDE SLOT AT CONN. PER BM STL BM SLOTTED PER # 3/8"xCOL. DIM + 1/2" (2) 3/4" A307 THRU BOLTS IN HORIZ. SHORT SLOTTED HOLES STL COL. 1/4 1/4 # TO # 1/4 NOTE: ALL STEEL IS GALVANIZED 15 S52-01 15 S52-01
