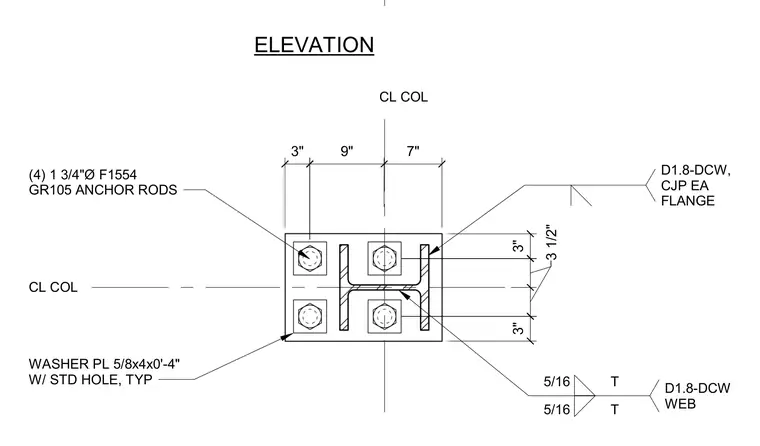

A structural steel column base plate assembly is anchored with four 1-3/4 inch diameter ASTM F1554 Grade 105 anchor rods. Each anchor rod is paired with a 5/8-inch by 4-inch by 0'-4" washer plate featuring a standard hole. The column flanges are secured with complete joint penetration welds on each flange per D1.8-DCW. The column web is attached using 5/16-inch fillet welds per D1.8-DCW.
ELEVATION 9" 7" (4) 1 3/4"Ø F1554 GR105 ANCHOR RODS CL COL CL COL WASHER PL 5/8x4x0'-4" W/ STD HOLE, TYP D1.8-DCW, CJP EA FLANGE 5/16 T 5/16 T D1.8-DCW WEB 3" 3 1/2" 3 1/2" 3" 3"
