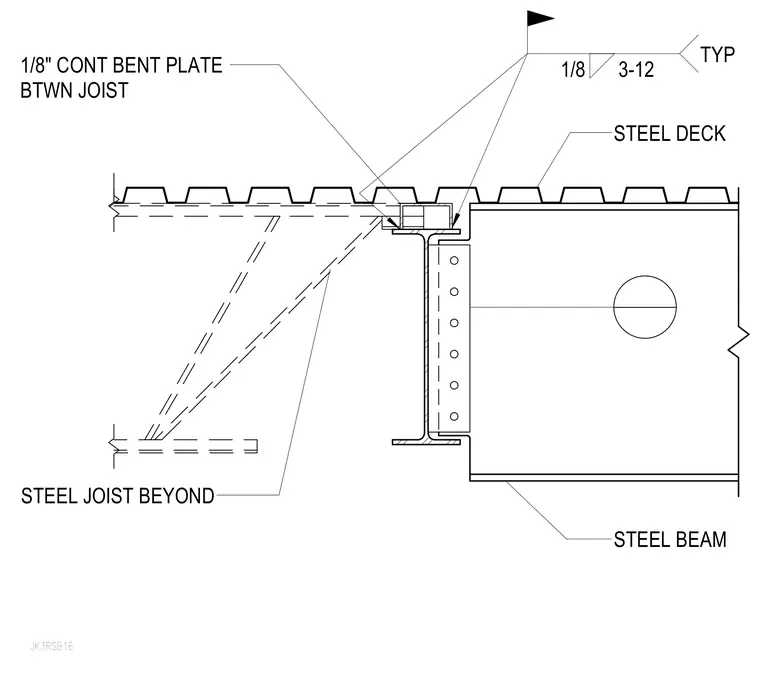

A steel joist bears onto a structural steel beam supporting a profiled steel deck above. A one-eighth-inch continuous bent plate is placed between the joist and the supporting steel member. A one-eighth-inch fillet weld with a three-twelve spacing pattern is applied typically to secure the components.
JK3RSB16 STEEL JOIST BEYOND STEEL DECK STEEL BEAM 1/8" CONT BENT PLATE BTWN JOIST 1/8 3-12 TYP
