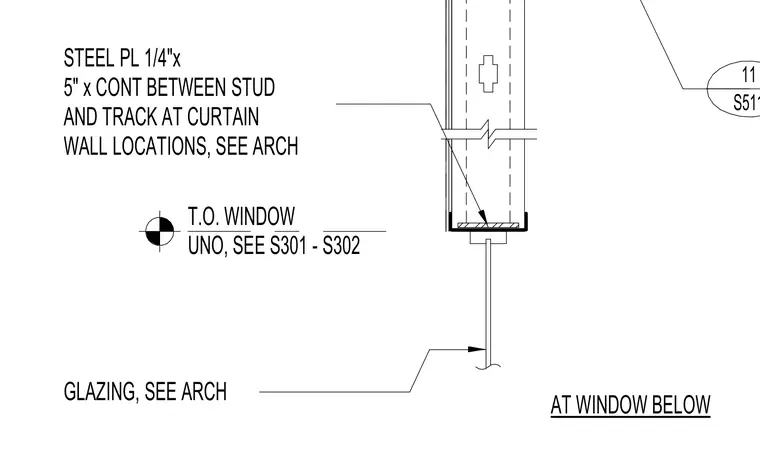

A continuous one-quarter-inch by five-inch steel plate is positioned between the metal stud and track at curtain wall locations. The assembly aligns above the top of the window, with glazing details coordinated per architectural drawings.
GLAZING, SEE ARCH AT WINDOW BELOW T.O. WINDOW STEEL PL 1/4"x 5" x CONT BETWEEN STUD AND TRACK AT CURTAIN WALL LOCATIONS, SEE ARCH UNO, SEE S301 - S302 11 S511
