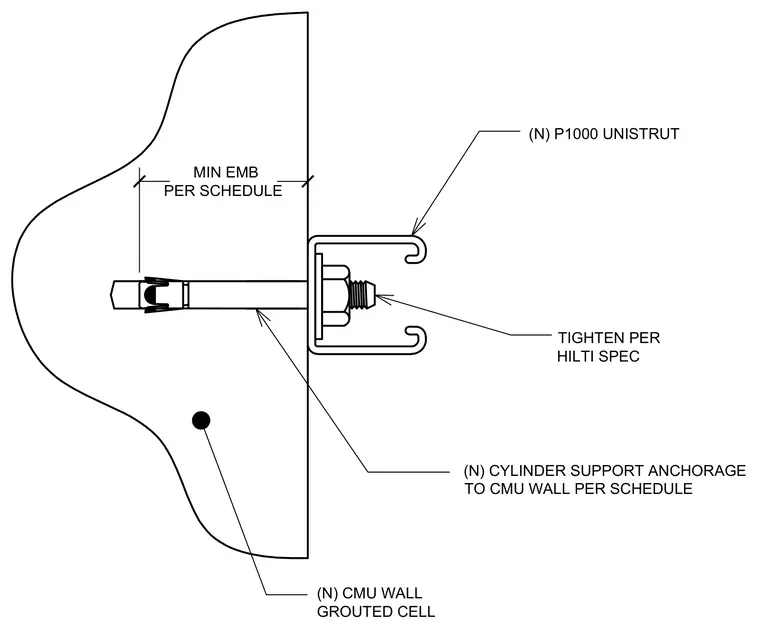

A new P1000 Unistrut channel mounts to a grouted cell concrete masonry unit wall using a cylinder support anchor. The expansion anchor is embedded to the minimum depth specified in the schedule and tightened according to manufacturer specifications.
(N) P1000 UNISTRUT (N) CMU WALL GROUTED CELL (N) CYLINDER SUPPORT ANCHORAGE TO CMU WALL PER SCHEDULE MIN EMB PER SCHEDULE TIGHTEN PER HILTI SPEC
