A continuous steel angle is anchored to a tilt-up concrete wall panel to support a metal deck assembly sized per plan. The connection utilizes three-quarter-inch-diameter threaded rods spaced at four feet on center, secured into the tilt panel with an adhesive anchoring system requiring a minimum four-inch embedment depth. The general contractor must submit anchor locations for review and approval prior to installation.

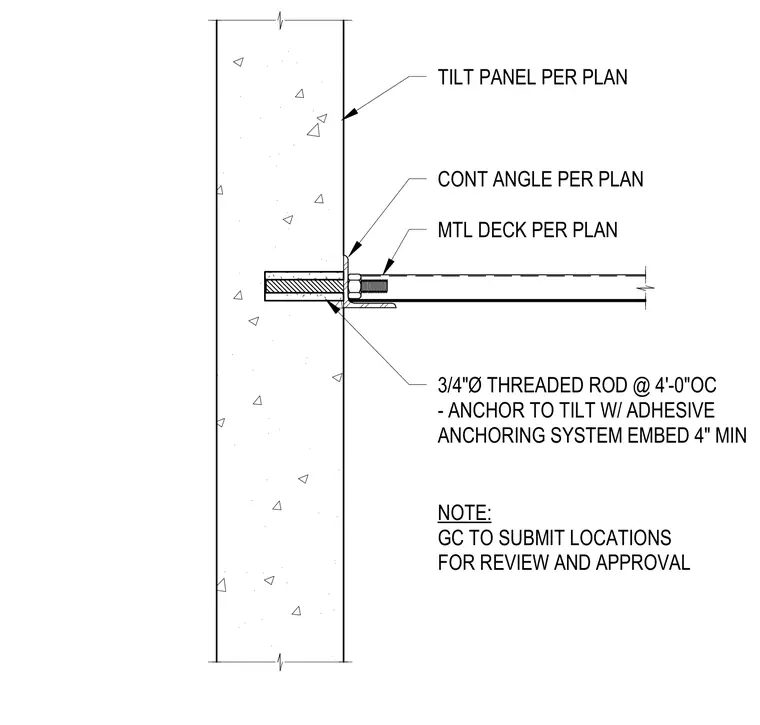

TILT PANEL PER PLAN CONT ANGLE PER PLAN MTL DECK PER PLAN 3/4"Ø THREADED ROD @ 4'-0"OC - ANCHOR TO TILT W/ ADHESIVE ANCHORING SYSTEM EMBED 4" MIN NOTE: GC TO SUBMIT LOCATIONS FOR REVIEW AND APPROVAL
