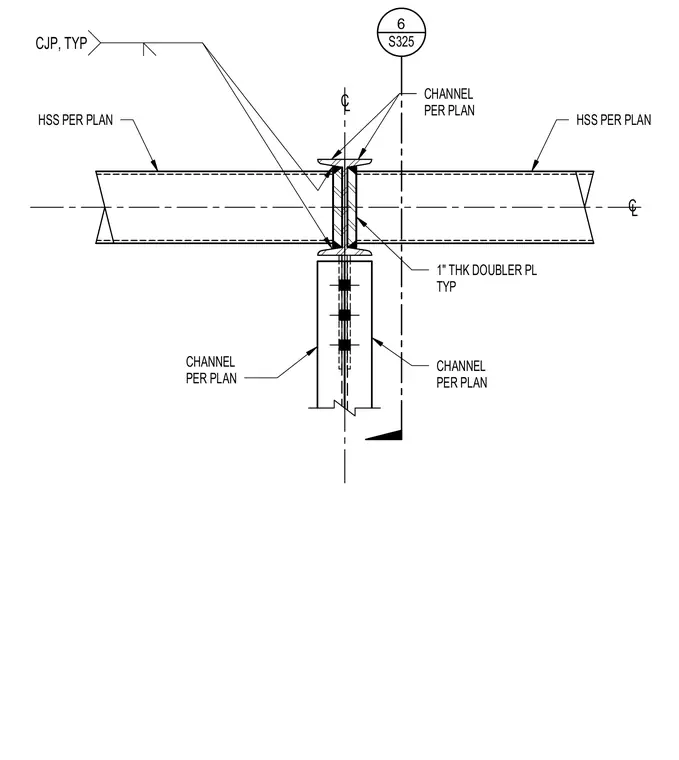

This structural connection detail joins hollow structural sections sized per plan to structural channels sized per plan with complete joint penetration welds typically throughout. A one-inch thick doubler plate is positioned between the channels as indicated typically on the drawing. Centerlines align the vertical channel support with the horizontal hollow structural section canopy framing members.
HSS PER PLAN CHANNEL PER PLAN C L C L HSS PER PLAN CHANNEL PER PLAN CHANNEL PER PLAN CJP, TYP 1" THK DOUBLER PL TYP 6 S325
