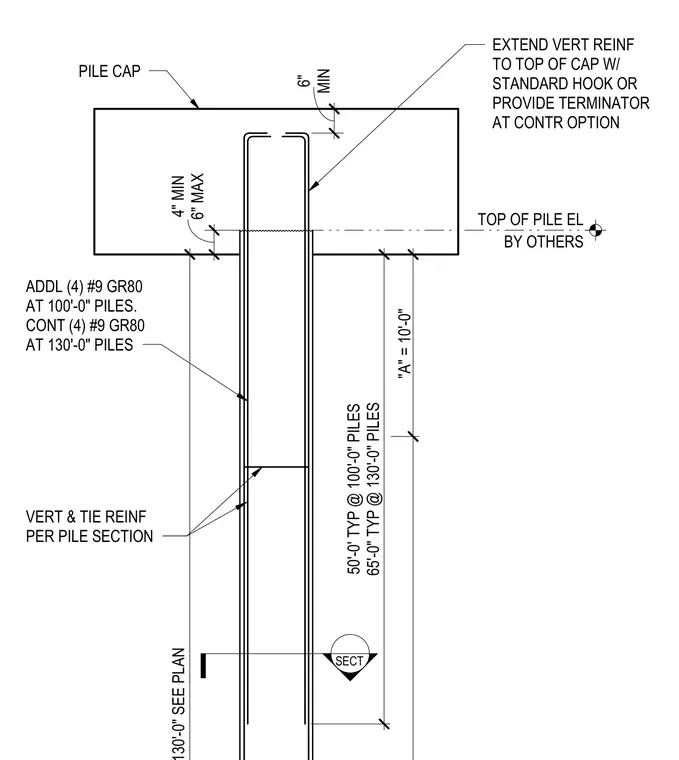

The concrete pile extends into the concrete pile cap with vertical and tie reinforcement per the pile section. Vertical reinforcement extends to the top of the cap with a standard hook or provides a terminator at the contractor's option, with four additional Grade 80 number nine bars at one hundred foot piles or four continuous Grade 80 number nine bars at one hundred thirty foot piles. Clearances include a four inch minimum to six inch maximum embedment above the top of the pile elevation, with dimension A equal to ten feet.
SECT PILE CAP BY OTHERS TOP OF PILE EL VERT & TIE REINF PER PILE SECTION 4" MIN 6" MAX EXTEND VERT REINF TO TOP OF CAP W/ STANDARD HOOK OR PROVIDE TERMINATOR AT CONTR OPTION MIN 6" 116 1/8" 50'-0' TYP @ 100'-0" PILES 65'-0" TYP @ 130'-0" PILES 45" "A" = 10'-0" ADDL (4) #9 GR80 AT 100'-0" PILES. CONT (4) #9 GR80 AT 130'-0" PILES
