Steel beams frame into the flange of a column using a bolted single plate shear connection with sizing determined by project specifications. The shear tab thickness equals the beam web thickness plus one-quarter inch, fastened with specified bolt sizes and quantities arranged in single or dual rows. Continuity plates match the top and bottom flanges using the larger thickness value between TF1 and TF2.

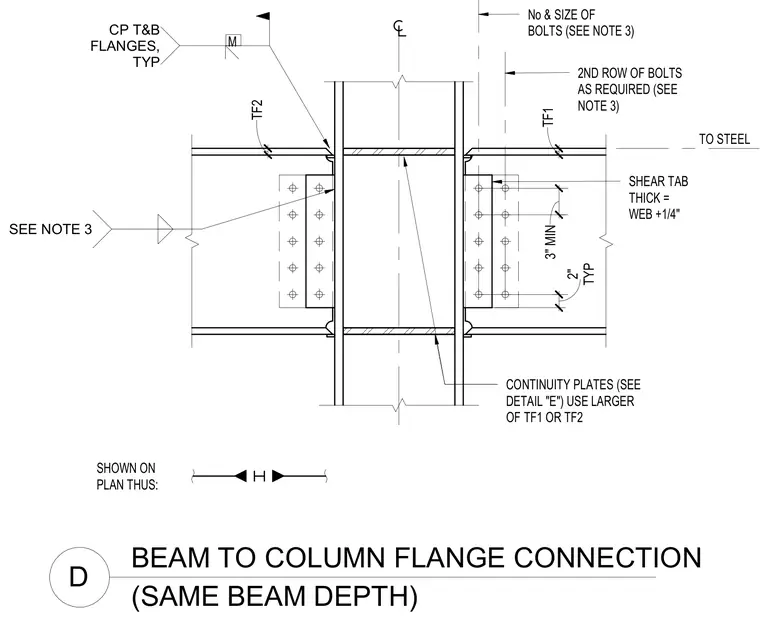

BEAM TO COLUMN FLANGE CONNECTION D (SAME BEAM DEPTH) TO STEEL No & SIZE OF BOLTS (SEE NOTE 3) 2ND ROW OF BOLTS AS REQUIRED (SEE NOTE 3) CONTINUITY PLATES (SEE DETAIL "E") USE LARGER OF TF1 OR TF2 SHEAR TAB THICK = WEB +1/4" TF2 TF1 3" MIN TYP 2" SHOWN ON PLAN THUS: SEE NOTE 3 CP T&B FLANGES, TYP M
