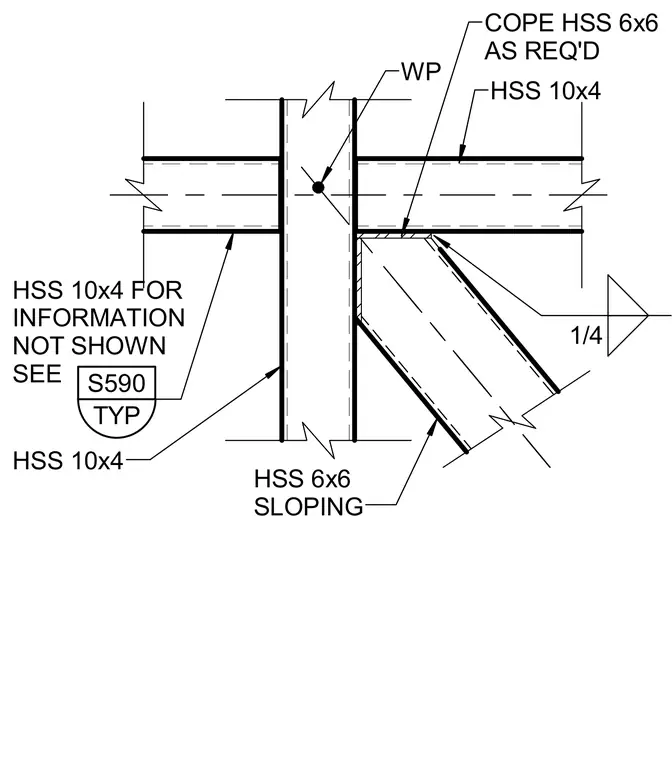

A sloping hollow structural section (HSS) 6x6 member frames into the intersection of a vertical hollow structural section 10x4 column and horizontal hollow structural section 10x4 beam at a work point (WP). The top of the sloping HSS 6x6 is coped as required to fit against the underside of the horizontal HSS beam. A one-quarter inch fillet weld connects the coped HSS to the adjacent structural members. Additional connection information is referenced to typical detail S590.
HSS 10x4 FOR INFORMATION NOT SHOWN SEE TYP S590 WP HSS 10x4 HSS 10x4 HSS 6x6 SLOPING 1/4 COPE HSS 6x6 AS REQ'D
