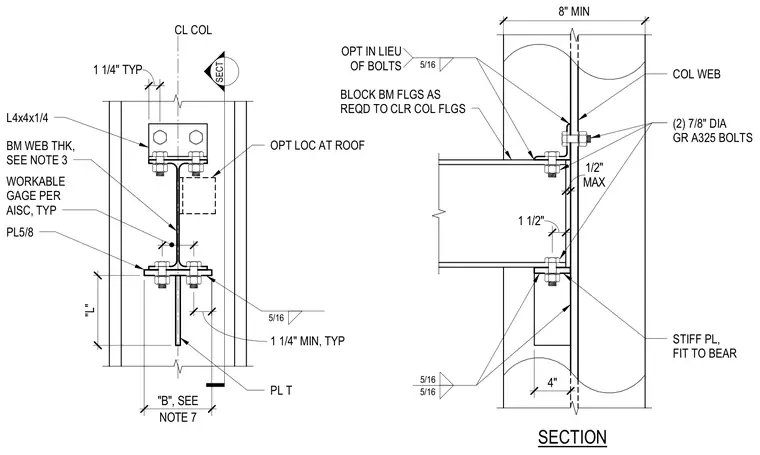

The steel beam connects to the column web using top and bottom structural angles measuring L4x4x1/4 and a five-eighths-inch thick plate. Two seven-eighths-inch diameter Grade A325 bolts fasten the angles to the column web. A stiffener plate is provided below the bottom angle and fitted to bear against the column web. Beam flanges are blocked as required to clear the column flanges. Five-sixteenths-inch fillet welds are specified at the angle and stiffener plate connections.
SECT BM WEB THK, SEE NOTE 3 PL5/8 L4x4x1/4 OPT LOC AT ROOF PL T 5/16 1 1/2" 5/16 5/16 COL WEB (2) 7/8" DIA GR A325 BOLTS STIFF PL, FIT TO BEAR SECTION OPT IN LIEU OF BOLTS 5/16 NOTE 7 "B", SEE "L" CL COL 4" MAX 1/2" 3 1/2" WORKABLE GAGE PER AISC, TYP 15 3/4" 1 1/4" TYP 2" BLOCK BM FLGS AS REQD TO CLR COL FLGS "L" 1 1/4" MIN, TYP 8" MIN
