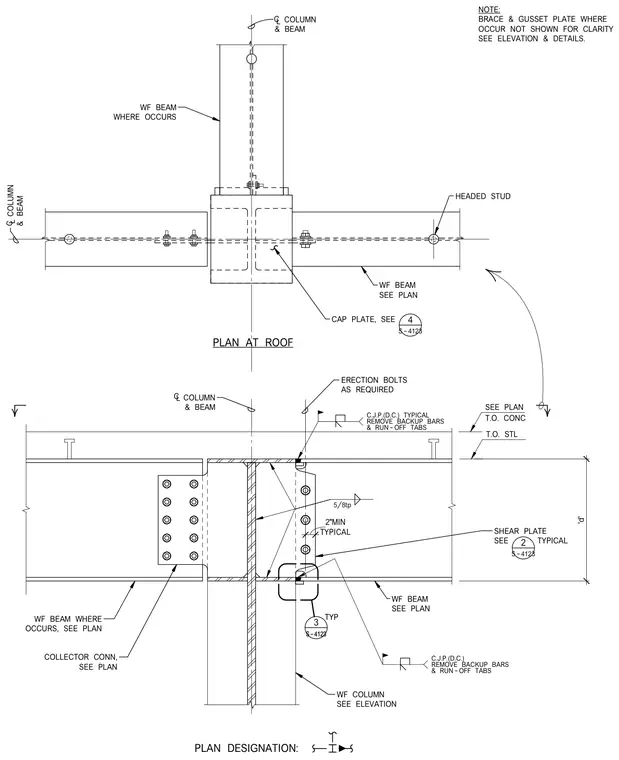

A one-sided moment connection at the top of a wide-flange column frames into wide-flange beams. A cap plate is located at the column top with erection bolts as required, shear plates are bolted to the beam webs, and complete joint penetration welds are made with backup bars and run-off tabs removed. Headed studs are provided along the top flange of the wide-flange beam for composite action. Braces and gusset plates are omitted from the drawing for clarity and are sized per plan. Erection bolts are installed as required for temporary alignment before final welding.
'd' TYPICAL 2"MIN PLAN AT ROOF HEADED STUD WF BEAM SEE PLAN COLUMN & BEAM C L WF BEAM WHERE OCCURS COLUMN & BEAM C L CAP PLATE, SEE ERECTION BOLTS AS REQUIRED COLUMN & BEAM C L REMOVE BACKUP BARS C.J.P.(D.C.) TYPICAL & RUN-OFF TABS SEE PLAN T.O. CONC T.O. STL SHEAR PLATE SEE TYPICAL WF BEAM SEE PLAN WF COLUMN SEE ELEVATION TYP REMOVE BACKUP BARS C.J.P.(D.C.) & RUN-OFF TABS 5/8tp S-4123 3 S-4123 4 S-4123 2 NOTE: BRACE & GUSSET PLATE WHERE OCCUR NOT SHOWN FOR CLARITY SEE ELEVATION & DETAILS. WF BEAM WHERE OCCURS, SEE PLAN PLAN DESIGNATION: COLLECTOR CONN, SEE PLAN
