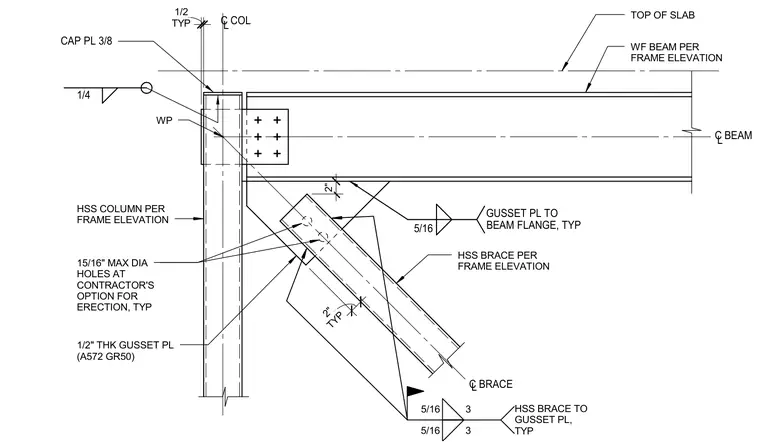

A wide-flange beam frames into an HSS column below a slab, tied together with a three-bolt connection at the web and a top cap plate welded to the column. A diagonal hollow structural section brace connects to a half-inch thick ASTM A572 Grade 50 gusset plate, welded to both the column and the underside of the beam flange with five-sixteenths fillet welds. The gusset plate features fifteen-sixteenths inch maximum diameter holes at the contractor's option for erection. The assembly transfers lateral loads from the brace into the primary structural frame.
CAP PL 3/8 C COL L 1/4 WF BEAM PER FRAME ELEVATION TOP OF SLAB WP TYP 1/2 C BEAM L GUSSET PL TO BEAM FLANGE, TYP C BRACE L HSS COLUMN PER FRAME ELEVATION 5/16 1/2" THK GUSSET PL (A572 GR50) HSS BRACE PER FRAME ELEVATION 15/16" MAX DIA HOLES AT CONTRACTOR'S OPTION FOR ERECTION, TYP TYP 2" 2" 5/16 3 5/16 3 HSS BRACE TO GUSSET PL, TYP
