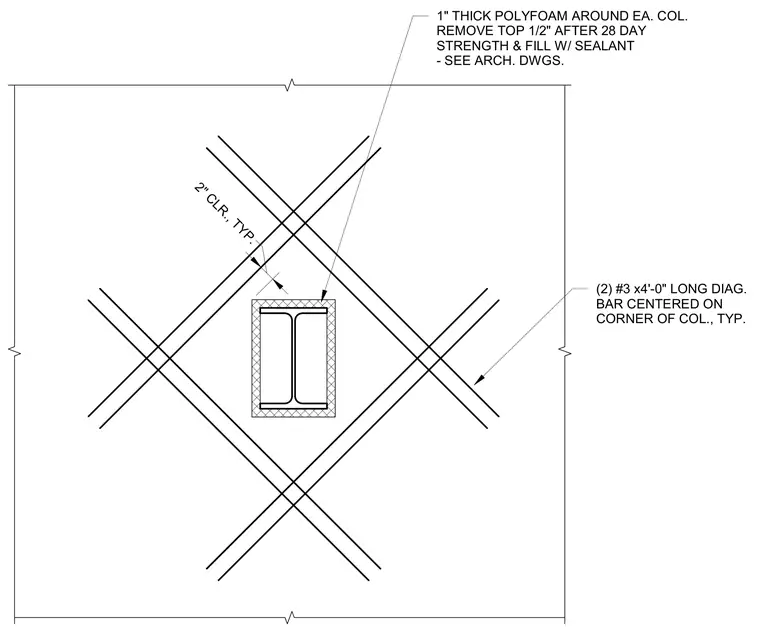

A structural steel column is wrapped with one-inch thick polyfoam on all sides, with the top half-inch removed after twenty-eight-day strength is achieved and filled with sealant per architectural drawings. Two number three diagonal reinforcing bars four feet zero inches long are centered on each corner of the column. A typical two-inch clearance is maintained around the assembly.
(2) #3 x4'-0" LONG DIAG. BAR CENTERED ON CORNER OF COL., TYP. 1" THICK POLYFOAM AROUND EA. COL. REMOVE TOP 1/2" AFTER 28 DAY STRENGTH & FILL W/ SEALANT - SEE ARCH. DWGS. 2" CLR., TYP.
