Structural · S-S4NKK

Steel Beam Moment Connection at Concrete Shear Wall

Materials

Steel

Elements

Beams Walls

Connections

Moment Connection Welded Connection Rebar Splice / Development

About this detail

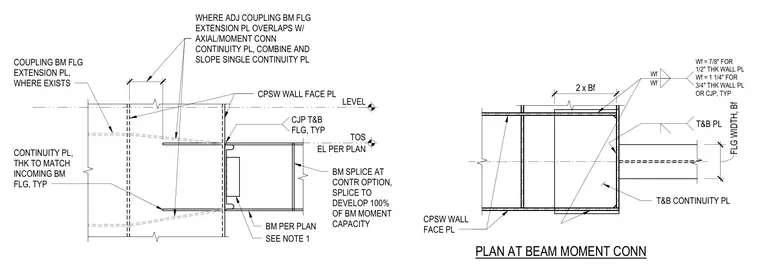

A moment connection joins a steel beam to a concrete shear wall face plate. Top and bottom flange continuity plates match the thickness of the incoming beam flange. Complete joint penetration welds connect the beam flanges to the assembly. Where adjacent coupling beam flange extensions overlap with axial and moment connections, continuity plates are combined and sloped into a single plate. An optional beam splice at the contractor's option develops one hundred percent of the beam moment capacity.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
