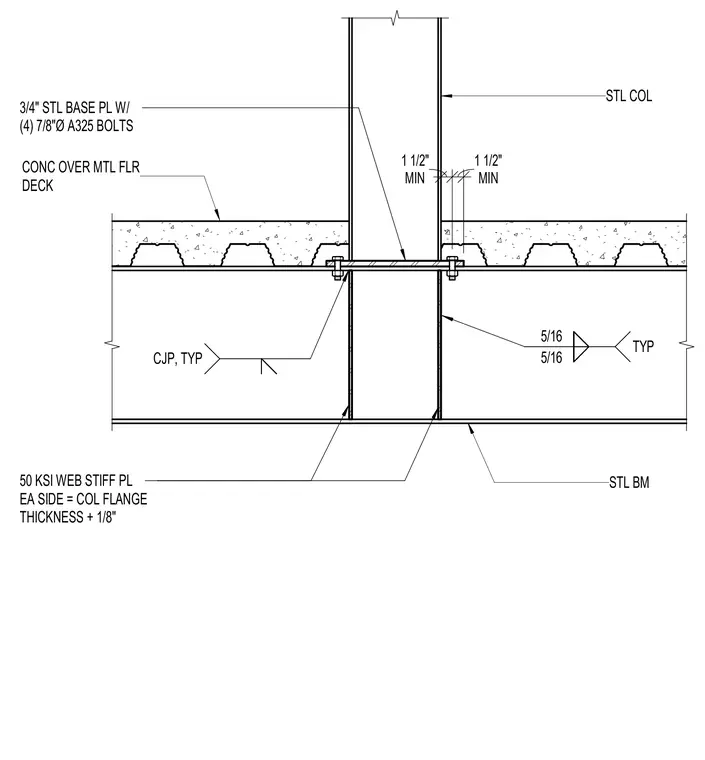

A structural steel column bears on a transfer beam through a three-quarter-inch steel base plate secured with four seven-eighth-inch diameter A325 bolts. Fifty KSI web stiffener plates are welded to each side of the beam web, sized to the column flange thickness plus one-eighth inch, with typical complete joint penetration welds. The steel beam passes beneath a concrete slab over a metal floor deck, maintaining a minimum one-and-a-half-inch clearance from the column face. Fillet welds connect the structural components with typical sizing indicated.
3/4" STL BASE PL W/ (4) 7/8"Ø A325 BOLTS 50 KSI WEB STIFF PL EA SIDE = COL FLANGE THICKNESS + 1/8" STL BM STL COL CONC OVER MTL FLR DECK 5/16 5/16 TYP CJP, TYP MIN 1 1/2" MIN 1 1/2"
