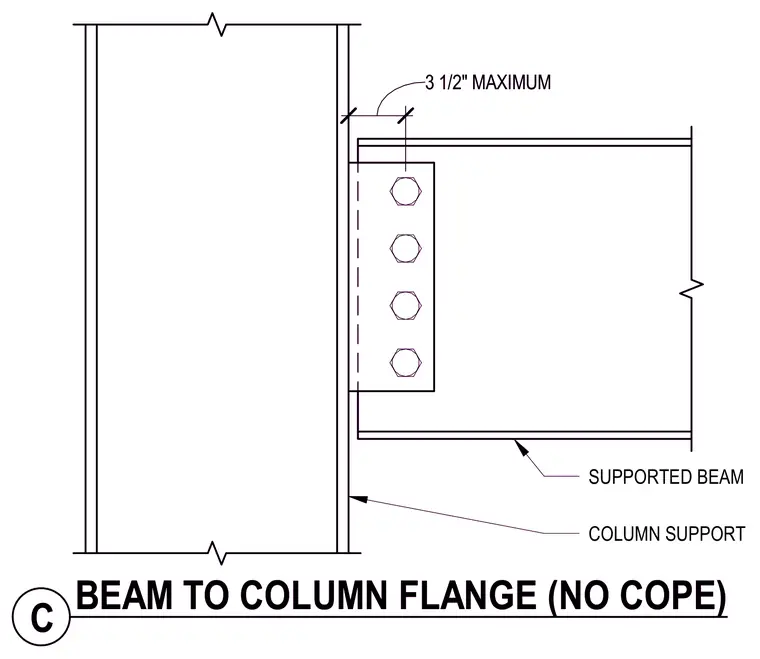

A supported beam frames directly into the flange of a column support without a flange cope. A shear tab welded to the column flange connects to the beam web using four bolts. A dimension of 3 1/2 inches maximum limits the offset from the column face to the beam end.
SUPPORTED BEAM 3 1/2" MAXIMUM COLUMN SUPPORT C BEAM TO COLUMN FLANGE (NO COPE) SUPPORTED BEAM 3 1/2" MAXIMUM COLUMN SUPPORT C BEAM TO COLUMN FLANGE (NO COPE)
