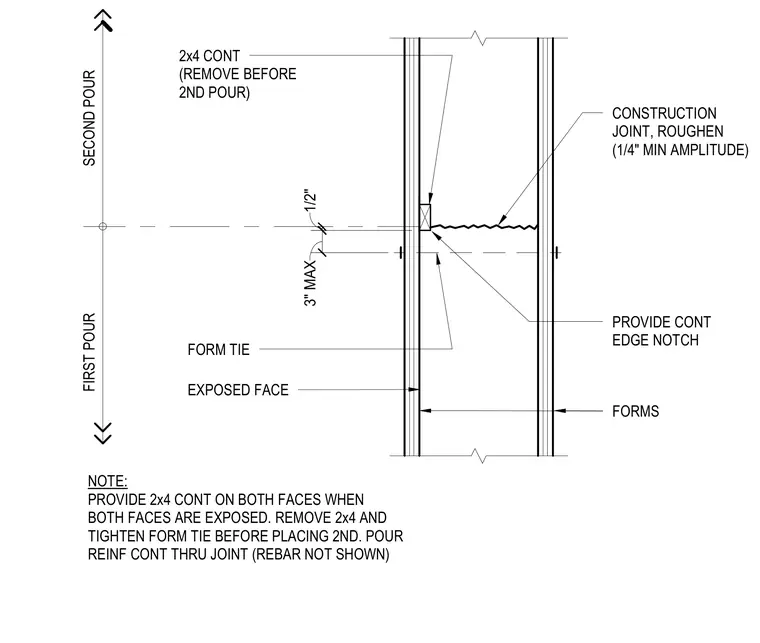

A horizontal construction joint occurs between a first and second concrete wall pour. The joint surface is roughened to a one-quarter inch minimum amplitude for shear transfer, featuring a continuous edge notch and form ties positioned within three inches maximum from the joint interface. A continuous two-by-four wood member is provided on the form face and removed before the second pour, with form ties tightened accordingly. Continuous reinforcing steel extends through the joint.
SECOND POUR FIRST POUR 2x4 CONT (REMOVE BEFORE 2ND POUR) CONSTRUCTION JOINT, ROUGHEN (1/4" MIN AMPLITUDE) PROVIDE CONT EDGE NOTCH FORM TIE EXPOSED FACE FORMS NOTE: PROVIDE 2x4 CONT ON BOTH FACES WHEN BOTH FACES ARE EXPOSED. REMOVE 2x4 AND TIGHTEN FORM TIE BEFORE PLACING 2ND. POUR REINF CONT THRU JOINT (REBAR NOT SHOWN) 1/2" 3" MAX
