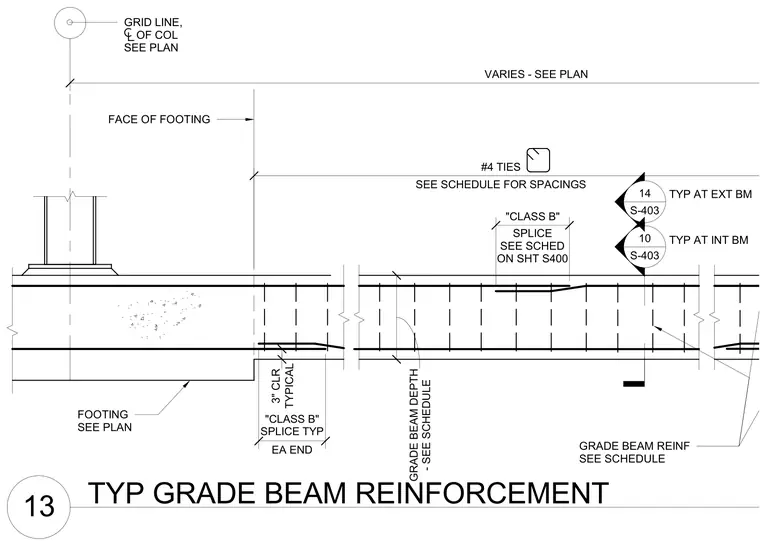

Concrete grade beam reinforcement consists of longitudinal steel and number 4 ties with spacings per the structural schedule. A Class B lap splice is provided typically at each end and at interior beam locations, sized per sheet S400. Three inches of concrete cover is maintained typically throughout. The grade beam depth varies as specified on plan, extending from the face of the footing aligned with the column center line grid.
TYP AT INT BM SPLICE SEE SCHED ON SHT S400 TYP AT EXT BM FOOTING SEE PLAN FACE OF FOOTING GRADE BEAM REINF SEE SCHEDULE VARIES - SEE PLAN SEE SCHEDULE FOR SPACINGS #4 TIES GRID LINE, OF COL SEE PLAN "CLASS B" TYPICAL 3" CLR - SEE SCHEDULE GRADE BEAM DEPTH 10 S-403 14 S-403 EA END "CLASS B" SPLICE TYP 13 TYP GRADE BEAM REINFORCEMENT
