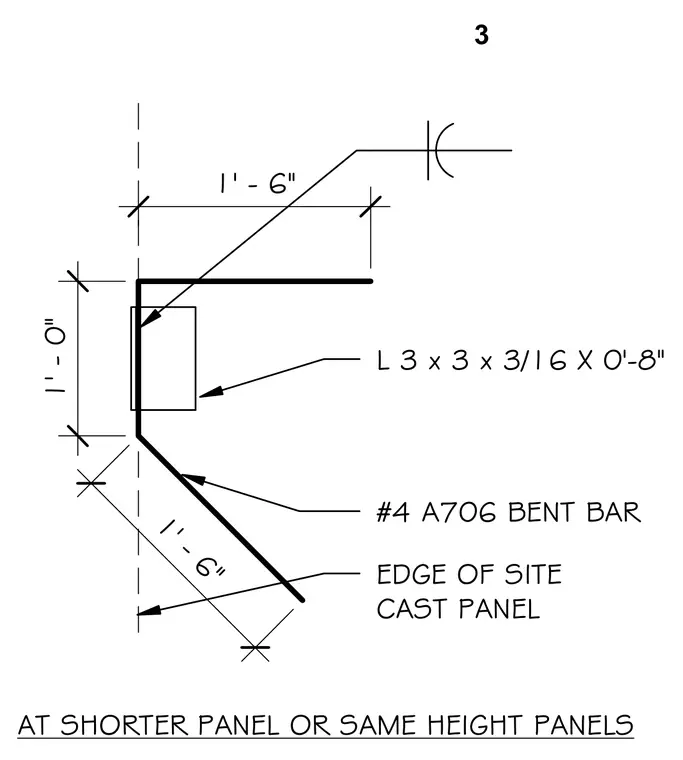

An angle measuring 3x3x3/16 inches by zero feet eight inches long is embedded at the edge of the site-cast panel. A number 4 A706 bent reinforcing bar extends along the inside face of the concrete panel near the corner joint. Dimensions of one foot six inches locate the bent bar and panel edge relative to the corner alignment. This assembly is used at shorter panels or panels of the same height.
AT SHORTER PANEL OR SAME HEIGHT PANELS 1' - 6" 1' - 0" 1' - 6" #4 A706 BENT BAR EDGE OF SITE CAST PANEL L 3 x 3 x 3/16 X 0'-8" 3
