Structural · S-S3VZX

Cantilevered Beam Connection at Column

Elements

Columns Beams Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection

About this detail

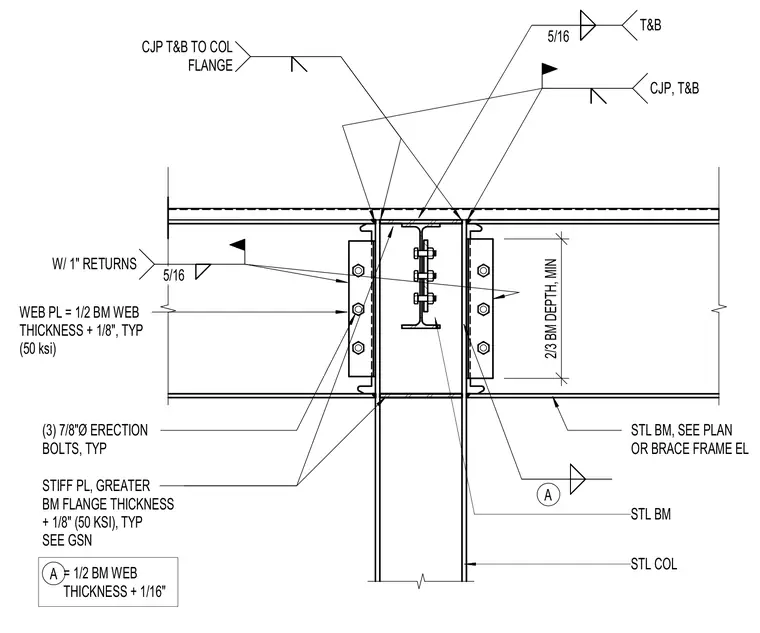

A structural steel beam connects to a steel column using complete joint penetration welds at the top and bottom flanges. Web plates sized to one-half the beam web thickness plus one-eighth inch are welded with five-sixteenth inch fillets featuring one-inch returns. Three seven-eighth inch diameter erection bolts secure the beam web during erection. Stiffener plates matching the beam flange thickness plus one-eighth inch are provided at the column supports. All steel components are fifty ksi yield strength typical.
