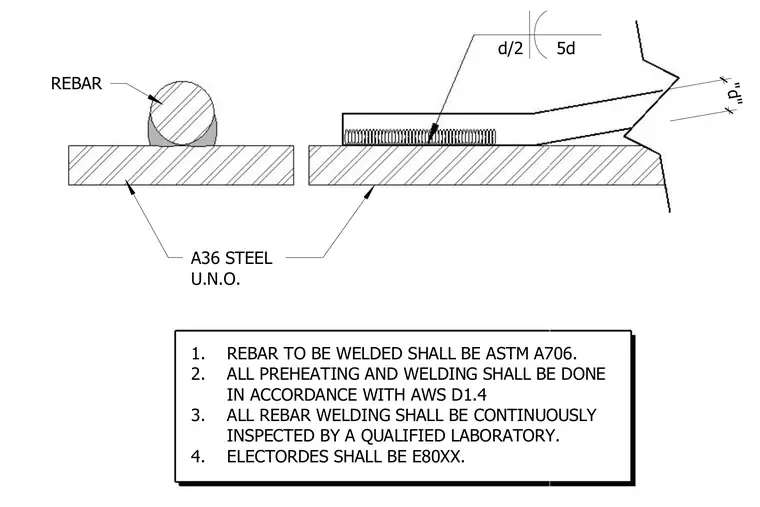

Reinforcing bar is welded to an A36 steel plate using E80XX electrodes in accordance with AWS D1.4. Rebar to be welded shall be ASTM A706, and all welding requires continuous inspection by a qualified laboratory. The detail specifies lap dimensions and weld placement relative to the bar diameter d, including a five-bar-length lap and half-bar-diameter offset.
"d" A36 STEEL U.N.O. 1. REBAR TO BE WELDED SHALL BE ASTM A706. 2. ALL PREHEATING AND WELDING SHALL BE DONE IN ACCORDANCE WITH AWS D1.4 3. ALL REBAR WELDING SHALL BE CONTINUOUSLY INSPECTED BY A QUALIFIED LABORATORY. 4. ELECTORDES SHALL BE E80XX. REBAR d/2 5d
