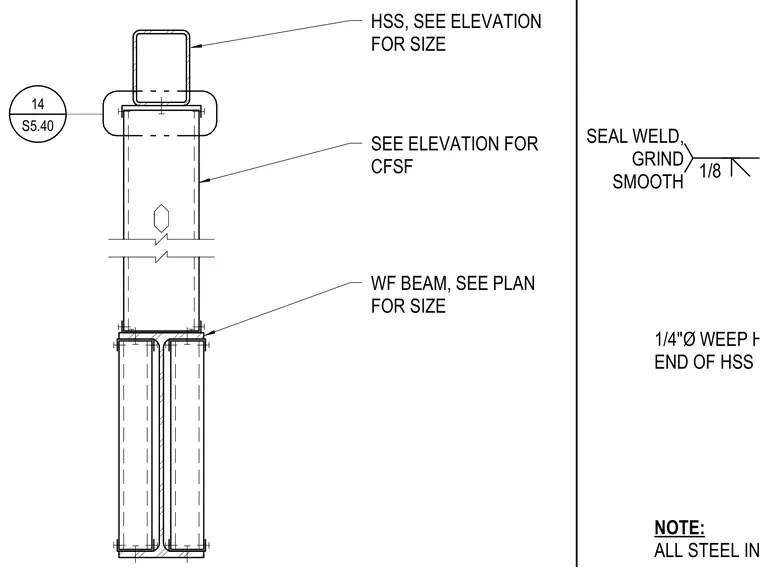

A hollow structural section member of sized per elevation connects to a cold-formed steel framing member of sized per elevation, which ties into a wide-flange beam sized per plan at the base. A one-eighth-inch seal weld is specified with welds ground smooth. A one-quarter-inch-diameter weep hole is located at the end of the hollow structural section for drainage. All steel in this assembly is galvanized and painted.
HSS, SEE ELEVATION FOR SIZE SEE ELEVATION FOR CFSF WF BEAM, SEE PLAN FOR SIZE S5.40 14 1/4"Ø WEEP HOLE AT END OF HSS 1/8 SEAL WELD, GRIND SMOOTH NOTE: ALL STEEL IN THIS DETAIL IS GALVANIZED AND PAINTED
