The roof truss purlin framing consists of 4x6 number one members secured between roof truss purlin supports spanning eight feet unrounded unless otherwise noted. A 2x6 minimum wood member provides intermediate bracing within the framed bay. Eight total three-eighth-inch diameter by five-inch long lag screws fasten the wood framing members together. A designated loading capacity of XXX pounds maximum applies to the framed opening.

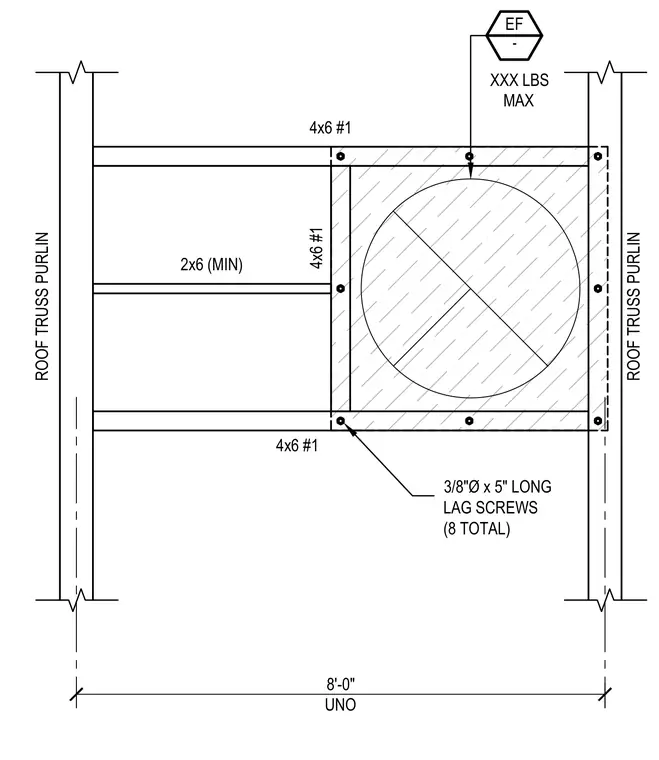

XXX LBS MAX 8'-0" UNO ROOF TRUSS PURLIN ROOF TRUSS PURLIN 4x6 #1 4x6 #1 4x6 #1 2x6 (MIN) EF - 3/8"Ø x 5" LONG LAG SCREWS (8 TOTAL)
