Structural · S-S3D65

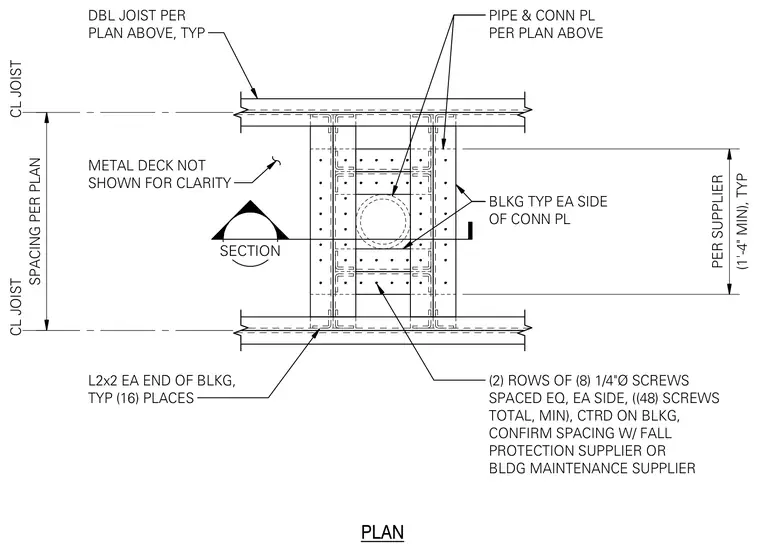

Roof Joist Blocking and Pipe Connection Plan

Materials

Elements

About this detail

Double joists run parallel spaced per plan with blocking placed typically on each side of the connection plate. A pipe and connection plate are centered on the blocking assembly. Two rows of eight one-quarter-inch diameter screws are spaced equally on each side, totaling forty-eight screws minimum centered on the blocking. Spacing should be confirmed with the fall protection or building maintenance supplier. An L2x2 angle is located at each end of the blocking typically in sixteen places. The metal deck is omitted from the view for clarity.
