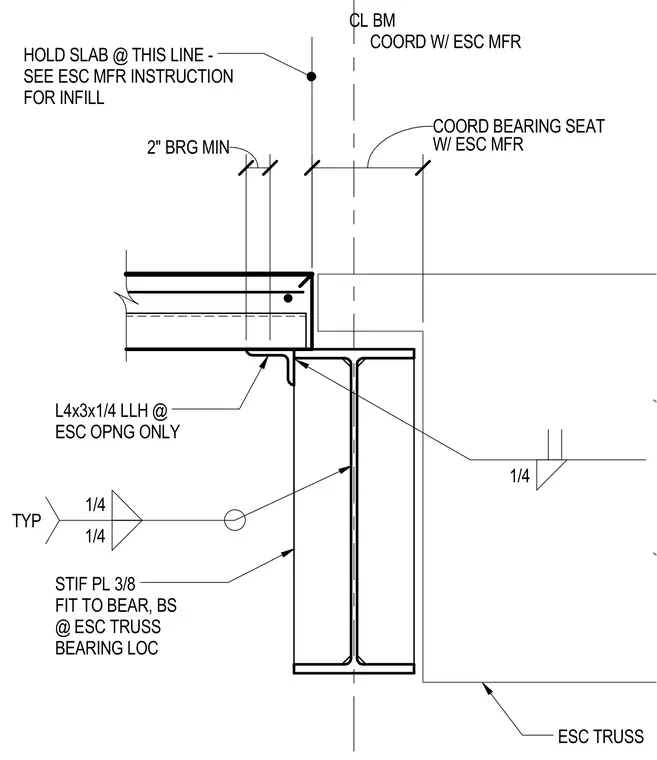

An L4x3x1/4 long leg horizontal angle is provided at the escalator opening only to support the slab edge, maintaining a two-inch minimum bearing requirement. A three-eighths-inch stiffener plate, fitted to bear and backed by a backing strip, is welded to the supporting wide flange beam web with typical quarter-inch fillet welds. The escalator truss bears adjacent to the centerline of the beam, requiring careful coordination with the escalator manufacturer for the bearing seat and infill slab edge alignment.
ESC TRUSS STIF PL 3/8 FIT TO BEAR, BS @ ESC TRUSS BEARING LOC L4x3x1/4 LLH @ ESC OPNG ONLY HOLD SLAB @ THIS LINE - SEE ESC MFR INSTRUCTION FOR INFILL CL BM COORD W/ ESC MFR 1/4 1/4 TYP 1/4 2" BRG MIN COORD BEARING SEAT W/ ESC MFR
