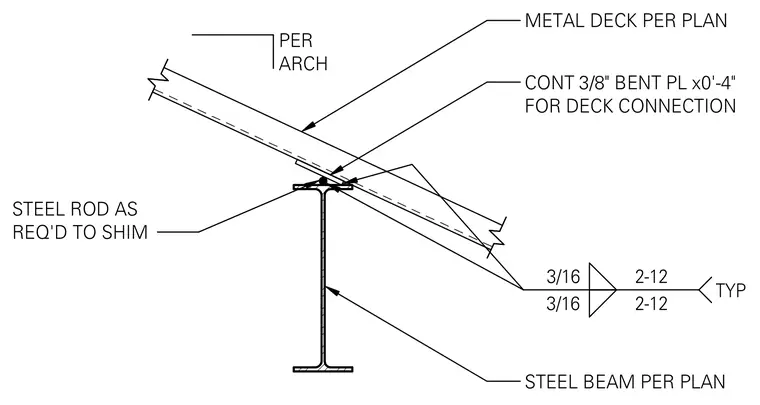

A sloped metal roof deck bears on a structural steel beam per plan, with a continuous three-eighths-inch bent plate welded for deck connection. A steel rod is provided as required to shim the deck assembly. Fillet welds of three-sixteenths inch secure the connection elements typical.
PER ARCH METAL DECK PER PLAN CONT 3/8" BENT PL x0'-4" FOR DECK CONNECTION STEEL ROD AS REQ'D TO SHIM STEEL BEAM PER PLAN 3/16 2-12 3/16 2-12 TYP
