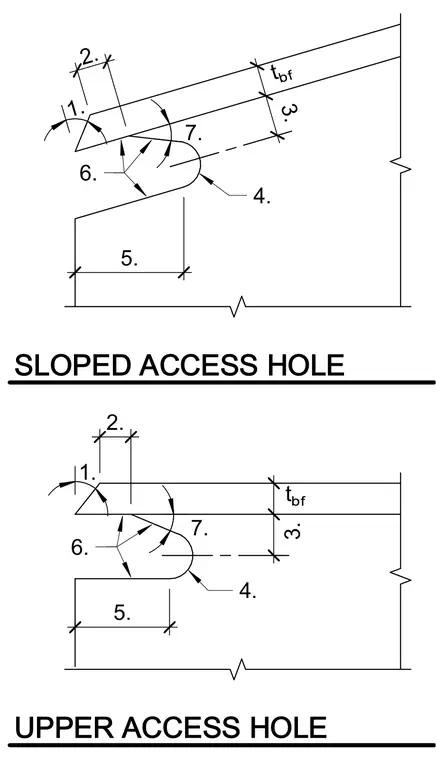

Access hole geometric configurations detail the radiused cutouts and dimensional parameters in structural steel beams. The sloped and upper access hole details provide specific angle measurements, radii, and clearance dimensions relative to the flange thickness. These geometric profiles ensure proper clearance for welding and fabrication operations in steel connections.
UPPER ACCESS HOLE tñô 1. 4. 6. 2. 5. 3. 7. SLOPED ACCESS HOLE tñô 1. 4. 6. 2. 5. 3. 7.
