Structural · S-S332A

Concrete Wall Opening Reinforcement and Lintel Detail

Elements

About this detail

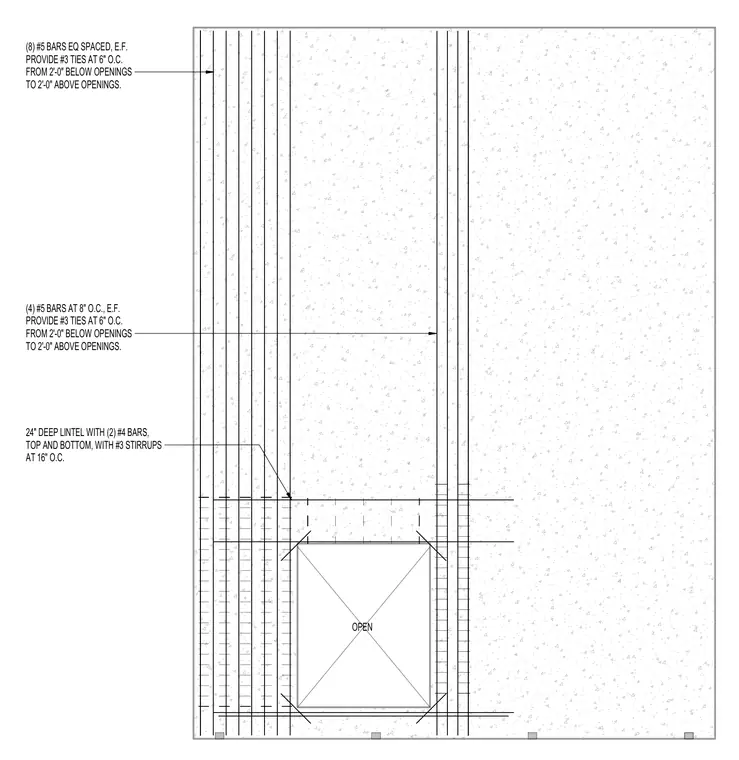

A twenty-four-inch deep concrete lintel is reinforced with two number four bars top and bottom, combined with number three stirrups at sixteen inches on center. Jambs feature four number five bars at eight inches on center each face, supplemented by number three ties at six inches on center extending from two feet below to two feet above the opening. Additional vertical wall reinforcement consists of eight number five bars equally spaced each face.
