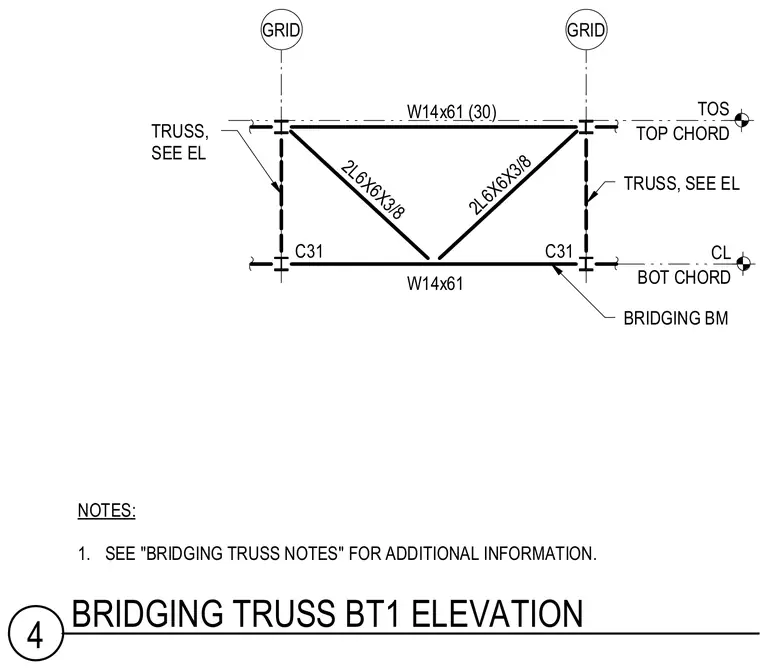

This structural steel bridging truss elevation details truss BT1 spanning between grid lines with a W14x61 top chord and a W14x61 bottom chord. Web members consist of double angles sized as 2L6x6x3/8 arranged diagonally between the chords. Connection details reference C31 at the bottom chord intersections, with top of steel (TOS) and centerline (CL) elevation markers indicated. Additional notes direct the builder to bridging truss notes for further information.
BOT CHORD CL TOP CHORD TOS GRID GRID 2L6X6X3/8 2L6X6X3/8 TRUSS, SEE EL TRUSS, SEE EL BRIDGING BM W14x61 (30) W14x61 NOTES: 1. SEE "BRIDGING TRUSS NOTES" FOR ADDITIONAL INFORMATION. C31 C31 4 BRIDGING TRUSS BT1 ELEVATION
