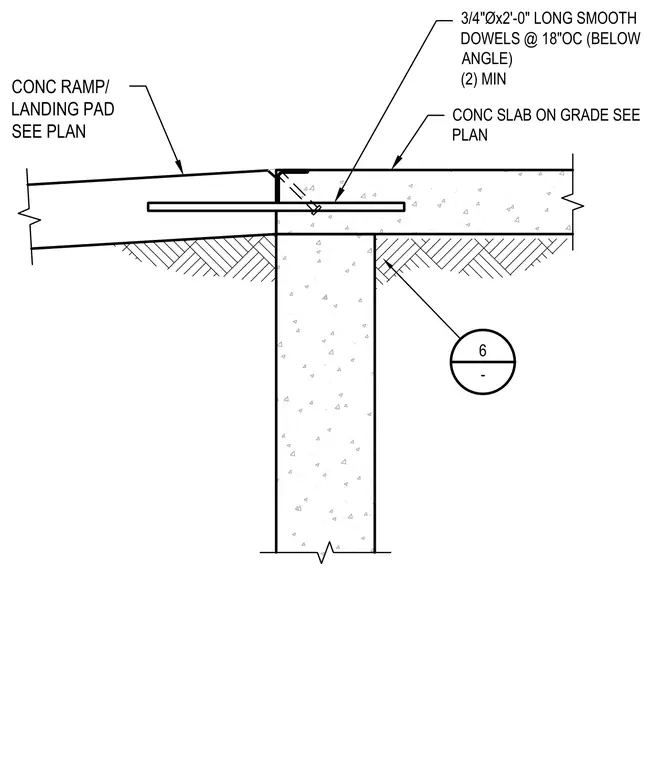

A concrete ramp landing pad meets a concrete slab on grade over a concrete stem wall. The junction incorporates three-quarter-inch diameter by two-foot long smooth dowels spaced at eighteen inches on center positioned below an embedded angle. The slab on grade and ramp dimensions are sized per plan.
CONC RAMP/ LANDING PAD SEE PLAN CONC SLAB ON GRADE SEE PLAN 6 - 3/4"Øx2'-0" LONG SMOOTH DOWELS @ 18"OC (BELOW ANGLE) (2) MIN
