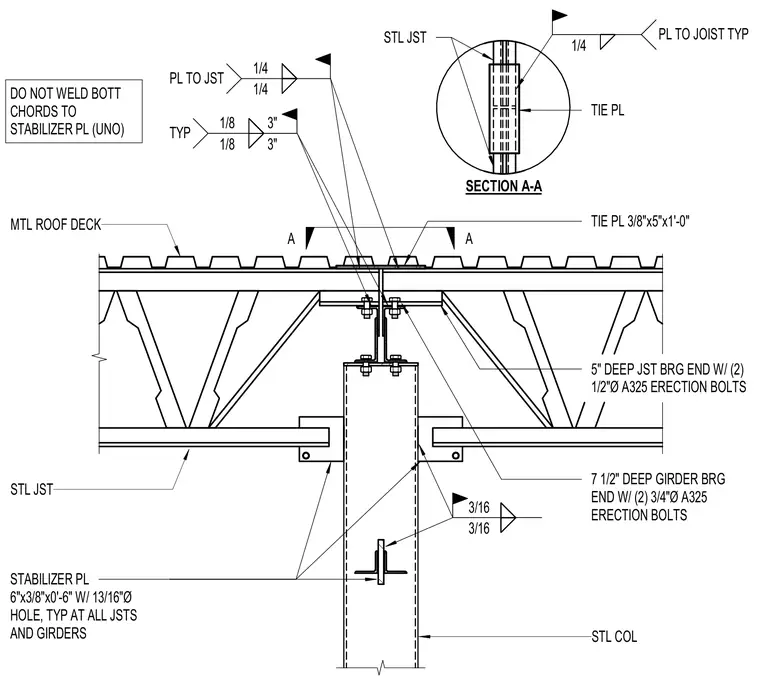

Steel roof joists and a girder bear on a steel column with a tie plate and a stabilizer plate. A five-inch-deep steel joist bearing end connects with two half-inch-diameter A325 erection bolts, while a seven-and-a-half-inch-deep girder bearing end connects with two three-quarter-inch-diameter A325 erection bolts. A tie plate measuring three-eighths by five inches by one foot connects across the members with quarter-inch fillet welds, and the bottom chords are left unwelded to the stabilizer plate unless otherwise noted. A stabilizer plate measuring six by three-eighths by six inches with a thirteen-sixteenths-inch diameter hole is provided typically at all joists and girders.
A A STABILIZER PL 6"x3/8"x0'-6" W/ 13/16"Ø HOLE, TYP AT ALL JSTS AND GIRDERS MTL ROOF DECK STL JST STL COL 5" DEEP JST BRG END W/ (2) 1/2"Ø A325 ERECTION BOLTS 7 1/2" DEEP GIRDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS DO NOT WELD BOTT CHORDS TO STABILIZER PL (UNO) TIE PL 3/8"x5"x1'-0" SECTION A-A TIE PL STL JST 3/16 3/16 1/4 1/4 PL TO JST 1/8 1/8 3" 3" TYP 1/4 PL TO JOIST TYP
