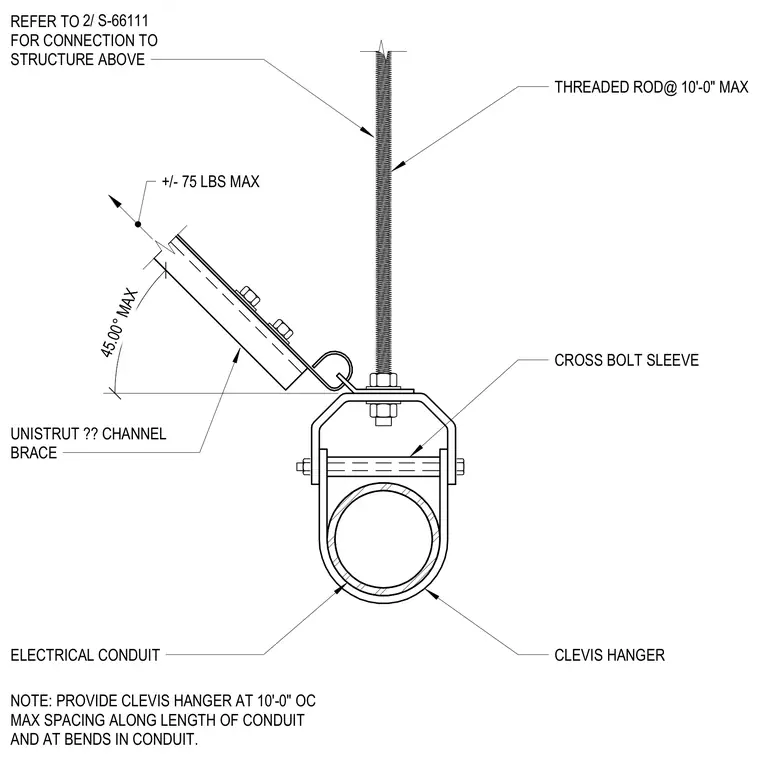

An electrical conduit is supported vertically by a clevis hanger suspended from a threaded rod spaced at a maximum of 10 feet on center, with the upper connection detailed on a separate sheet. A cross bolt sleeve secures the conduit within the clevis hanger. A Unistrut channel brace is attached at a maximum 45-degree angle to provide lateral support for loads up to 75 pounds maximum.
CLEVIS HANGER ELECTRICAL CONDUIT CROSS BOLT SLEEVE THREADED ROD@ 10'-0" MAX REFER TO 2/S-66111 FOR CONNECTION TO STRUCTURE ABOVE NOTE: PROVIDE CLEVIS HANGER AT 10'-0" OC MAX SPACING ALONG LENGTH OF CONDUIT AND AT BENDS IN CONDUIT. UNISTRUT ?? CHANNEL BRACE 45.00° MAX +/- 75 LBS MAX 2/ S-66111
