Steel Beams Bearing at Steel Beam and Column Support

Materials

Elements

Columns Beams Roofs Decks Connections / Plates

About this detail

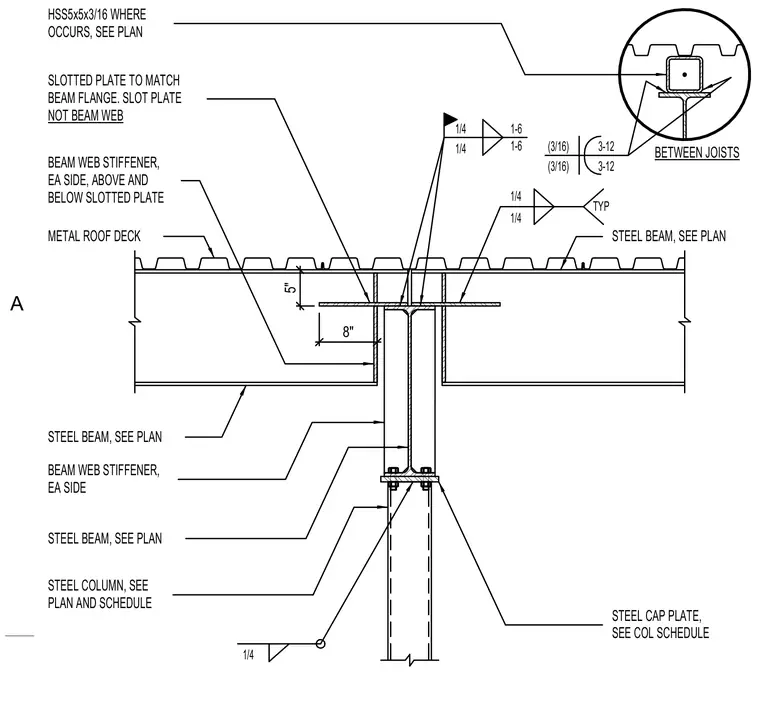

Steel beams bear on a supporting steel beam and column assembly, featuring a slotted plate to match the beam flange while leaving the beam web unslotted. Beam web stiffeners are provided on each side above and below the slotted plate, welded with 1/4-inch fillet welds. An HSS5x5x3/16 member is positioned between joists where indicated on the plan. A steel cap plate connects the supporting beam to the steel column per the column schedule, anchored with typical welded connections.
