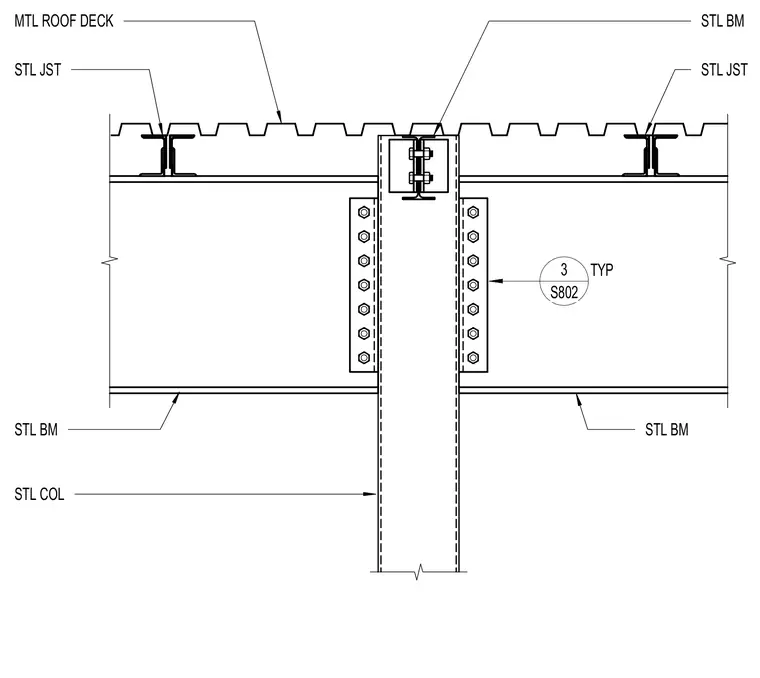

A wide flange steel beam frames into a steel column using bolted moment or shear connections with paired connection plates. Open web steel joists bear upon the primary framing members to support a corrugated metal roof deck typical throughout the assembly.
