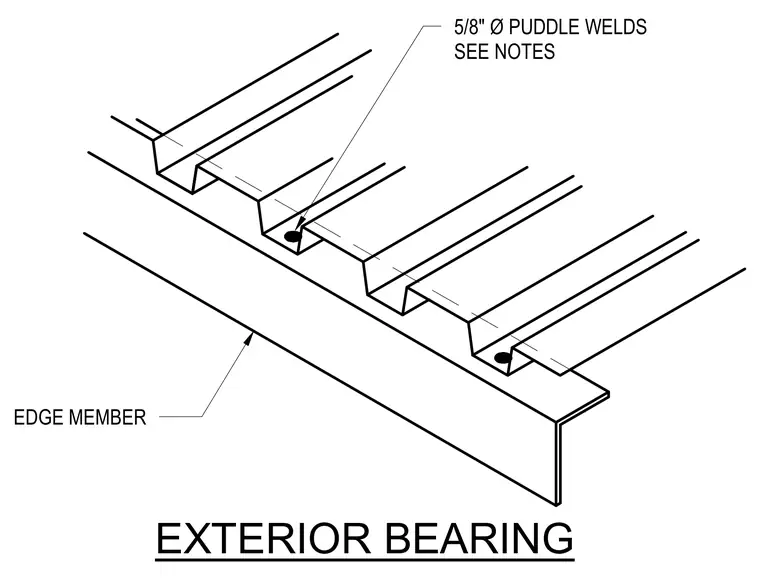

Metal floor or roof deck bears directly onto an exterior edge member and is secured using five-eighths inch diameter puddle welds placed per structural notes.
