Structural · S-RZFQC

Bottom Flange Lateral Brace Detail

Materials

Concrete Steel

Elements

Beams Decks Bracing Connections / Plates

Connections

Gusset Plate Bracing Connection Bolted Connection

About this detail

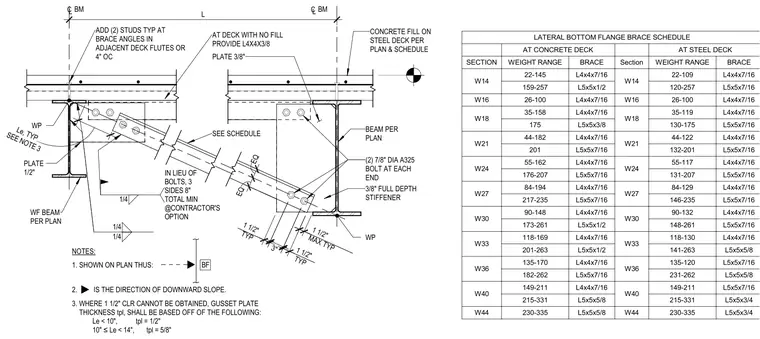

A lateral bottom flange brace connection between wide-flange beams supports a concrete-filled steel deck. The assembly incorporates angle braces tied into gusset plates, connected using two 7/8-inch diameter A325 bolts at each end or alternatively an 8-inch total minimum weld along three sides at the contractor's option. A 3/8-inch full-depth stiffener is provided at the deck when no fill is present, along with an L4x4x3/8 angle. Additional connection elements include a 1/2-inch plate, a 3/8-inch plate, and two studs typically added at brace angles in adjacent deck flutes or at 4 inches on center. Notes specify criteria for gusset plate thickness based on clear distance Le, along with schedules defining specific brace sizes for various wide-flange beam weight ranges under both concrete deck and steel deck conditions.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
